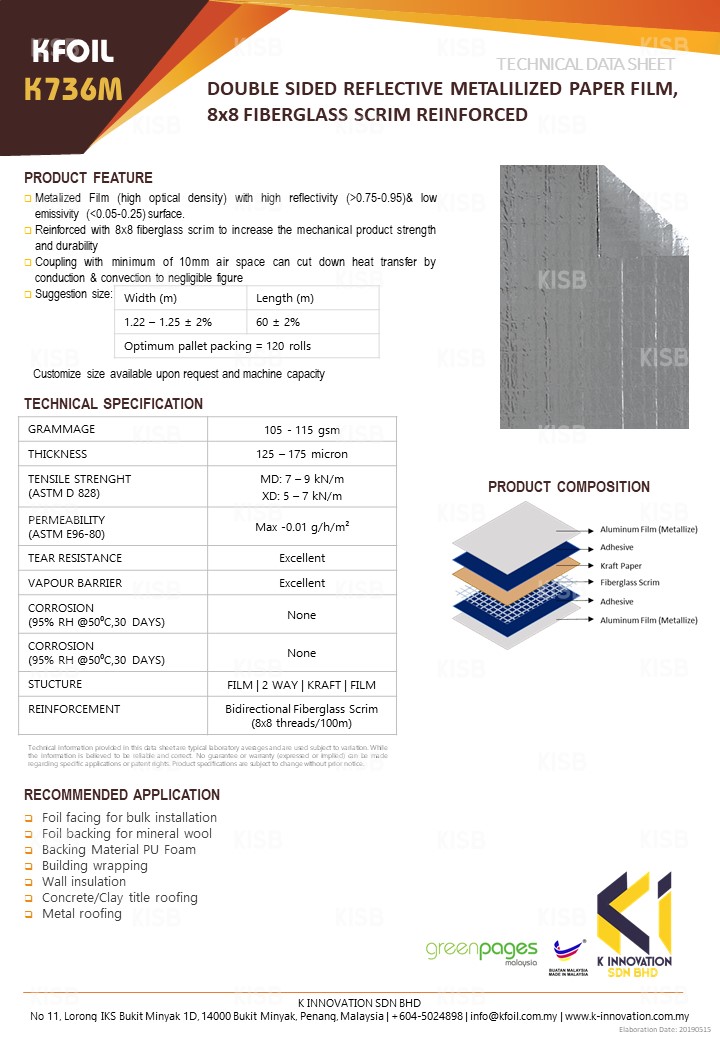

Double Sided Reflective Metalized Paper Film,8x8 Fiberglass Scrim Reinforced (K736M)
DOWNLOAD TDS
Product Description
DOUBLE SIDED RETARDANT ALUMINIUM PAPER FOIL/FILM, POLYESTER YARN REINFORCED
PRODUCT FEATURE
Technical information provided in this data sheet are typical laboratory averages and are subject to variation.
While the information is believed to reliable and correct, no guarantee or warranty (expressed or implied) can be made regarding specific applications or patent right.
Product specifications are subject to change without prior notice
Product Description
DOUBLE SIDED RETARDANT ALUMINIUM PAPER FOIL/FILM, POLYESTER YARN REINFORCED
PRODUCT FEATURE
- Metalized Film (high optical density) with high reflectivity (>0.75-0.95) & low emissivity (<0.05-0.25) surface
- Reinforced with polyester yarn to increase the mechanical product strength and durability.
- Coupling with minimum of 10mm air space can cut down heat transfer by conduction & convection to negligible figure.
-
Suggestion Size :
Width(m) Length (m) 1.22 – 1.25 ± 2% 60 ± 2% Optimum packing pallet =120 rolls
GRAMMAGE | 105 – 115gsm |
THICKNESS | 125 – 175 microns |
TENSILE STRENGTH (ASTM D 828) |
MD: 7 - 9 kN/m CD: 5 - 7 kN/m |
PERMEABILITY (ASTM E96-80) |
Max – 0.01g/h/m2 |
TEAR RESISTANCE | Excellent |
VAPOUR BARRIER | Excellent |
CORROSION (95% RH@50°C,30 DAYS) |
None |
CORROSION (95% RH@50°C,30 DAYS) |
None |
STUCTURE | FILM | 2 WAY | KRAFT | FILM |
REINFORCEMENT |
Bidirectional Fiberglass Scrim (8x8 threads/100m) |
Technical information provided in this data sheet are typical laboratory averages and are subject to variation.
While the information is believed to reliable and correct, no guarantee or warranty (expressed or implied) can be made regarding specific applications or patent right.
Product specifications are subject to change without prior notice
RECOMMENDED APPLICATION
|
