Product Description

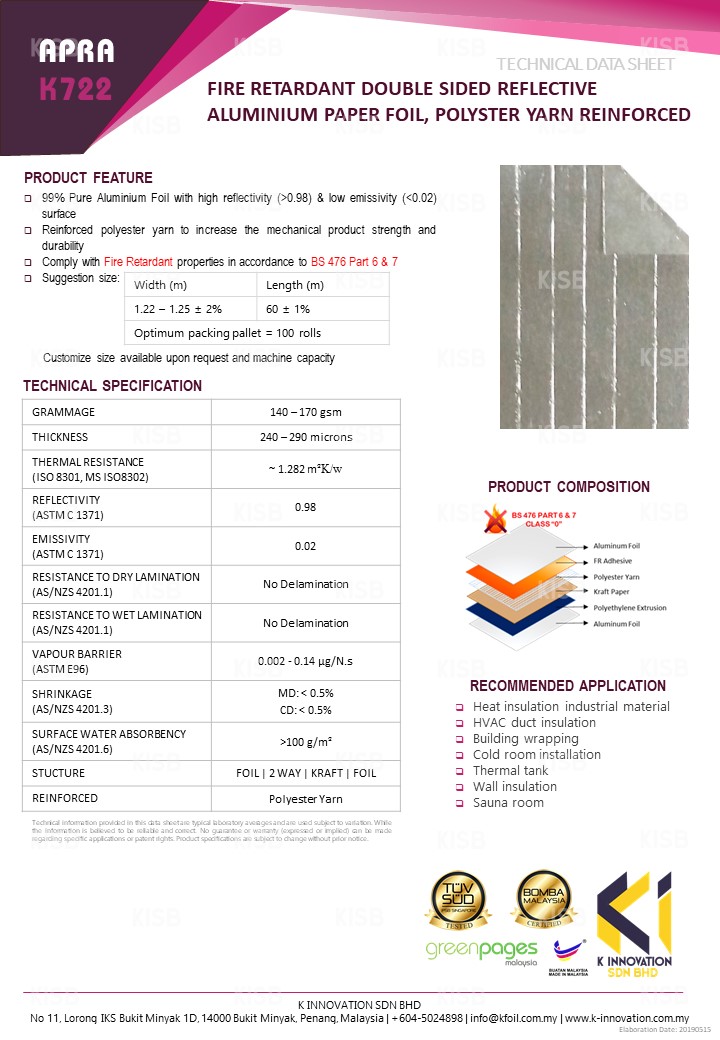

FIRE RETARDANT DOUBLE SIDED REFLECTIVE ALUMINIUM PAPER FOIL, POLYSTER YARN REINFORCED

PRODUCT FEATURE :-

• 99% Pure aluminium Foil with high reflectivity (>0.98) & (>0.02) surface
• Reinforced with polyester yarn to increase the mechanical product strength and durability
• Comply with Fire Retardant properties in accordance to BS 476 Part 6&7
• Suggestion size:

  Width(m)	Length (m)
  1.22 – 1.25 ± 2%	60 ± 1%
  Optimum packing pallet =100 rolls

  Customize size available upon request and machine capacity

TECHNICAL SPECIFICATION


GRAMMAGE	140 – 170gsm
THICKNESS	240 – 290 microns
THERMAL RESISTANCE (ISO 8301, MS ISO8302)	~1.282m2K/w
REFLECTIVITY (ASTM C 1371)	0.98
EMISSIVITY (ASTM C 1371)	0.02
RESISTANCE TO DRY LAMINATION  (AS/NZS 4201.1)	No Delamination
RESISTANCE TO WET LAMINATION  (AS/NZS 4201.1)	No Delamination
VAPOUR BARRIER (ASTM E96)	0.002 – 0.14μg/N.s
SHRINKAGE (AS/NZS 4201.3)	MD:<0.5% CD:<0.5%
SURFACE WATER ABSORBENCY (AS/NZS 4201.6)	>100g/m2
STUCTURE	Foil | 2 WAY | KRAFT | FOIL
REINFORCED	Polyester Yarn



Technical information provided in this data sheet are typical laboratory averages and are subject to variation.
While the information is believed to reliable and correct, no guarantee or warranty (expressed or implied) can be made regarding specific applications or patent right.
Product specifications are subject to change without prior notice

RECOMMENDED APPLICATION Heat insulation industrial material HVAC duct insulation Building wrapping Cold room installation Thermal Tank Wall insulation Sauna room
