APRA K431 Fire Retardant Insulation Foil (BS476 PART 6 & 7) INSULATION FOIL Penang, Malaysia, Seberang Perai Supplier, Distributor, Supply, Supplies | K Innovation Sdn Bhd

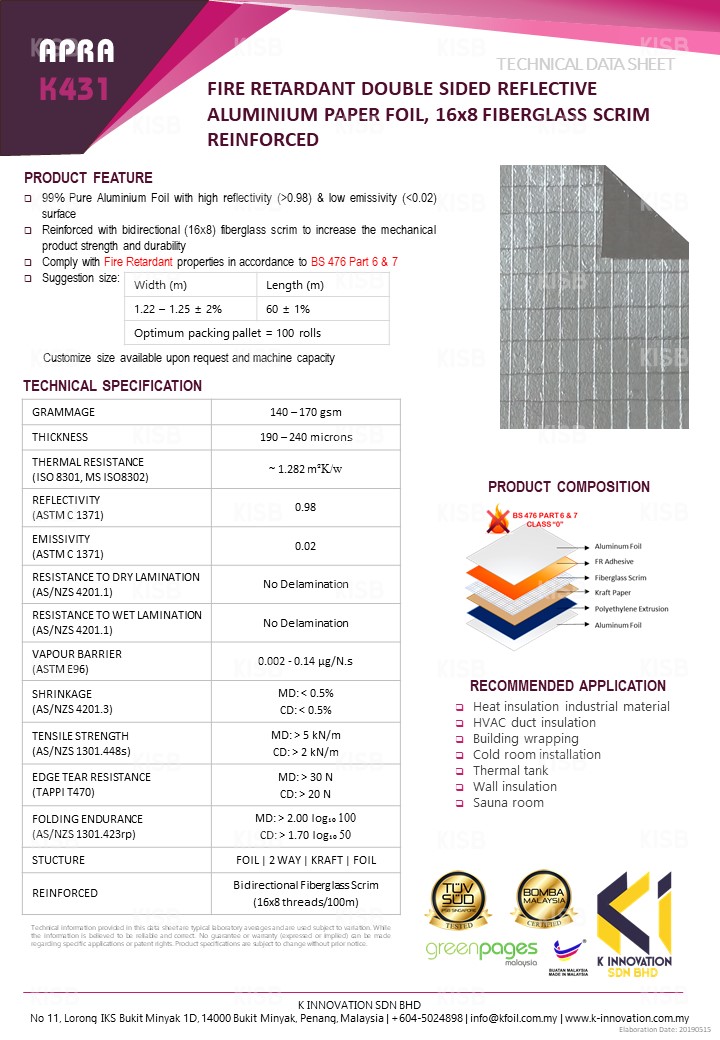

DOWNLOAD TDS

Product Description
FIRE RETARDANT DOUBLE SIDED REFLECTIVE ALUMINIUM PAPER FOIL, 16x8 FIBERGLASS SCRIM REINFORCED

PRODUCT FEATURE :-
  • 99% Pure aluminium Foil with high reflectivity (>0.98) & (>0.02) surface
  • Reinforced with bidirectional (8x8) fiberglass scrim to increase the mechanical product strength and durability
  • Comply with Fire Retardant properties in accordance to BS 476 Part 6&7
  • Suggestion size:
    Width(m) Length (m)
    1.22 – 1.25 ± 2% 60 ± 1%
    Optimum packing pallet =100 rolls
    Customize size available upon request and machine capacity
TECHNICAL SPECIFICATION
GRAMMAGE 140 – 170gsm
THICKNESS 190 – 240
Microns
THERMAL RESISTANCE
(ISO 8301, MS ISO8302)
~1.282m2K/w
REFLECTIVITY
(ASTM C 1371)
0.98
EMISSIVITY
(ASTM C 1371)
0.02
RESISTANCE TO DRY LAMINATION
(AS/NZS 4201.1)
No Delamination
RESISTANCE TO WET LAMINATION
(AS/NZS 4201.1)
No Delamination
VAPOUR BARRIER
(ASTM E96)
0.002 – 0.14μg/N.s
SHRINKAGE
(AS/NZS 4201.3)
MD:<0.5%
CD:<0.5%
TENSILE STRENGTH
(AS/NZS 1301.448s)
MD:>5 kN/m
CD:>2 kN/m
EDGE TEAR RESISTANCE
(TAPPI T470)
MD:>30N
CD:>20N
FOLDING RESISTANCE
(AS/NZS 1301.423rp)
MD:>2.00 LOG10100
CD:>1.70 LOG10 50
STUCTURE Foil | 2 WAY | KRAFT | FOIL
REINFORCED Bidirectional Fiberglass Scrim(16x8 threads/100m)

















































Technical information provided in this data sheet are typical laboratory averages and are subject to variation.
While
the information is believed to reliable and correct, no guarantee or warranty (expressed or implied) can be made regarding specific applications or patent right.
Product specifications are subject to change without prior notice
RECOMMENDED APPLICATION
  • Heat insulation industrial material
  • HVAC duct insulation
  • Building wrapping
  • Cold room installation
  • Thermal Tank
  • Wall insulation
  • Sauna room
