APRA K731 Fire Retardant Insulation Foil (BS476 PART 6 & 7) INSULATION FOIL Penang, Malaysia, Seberang Perai Supplier, Distributor, Supply, Supplies

1 / 3

APRA K731

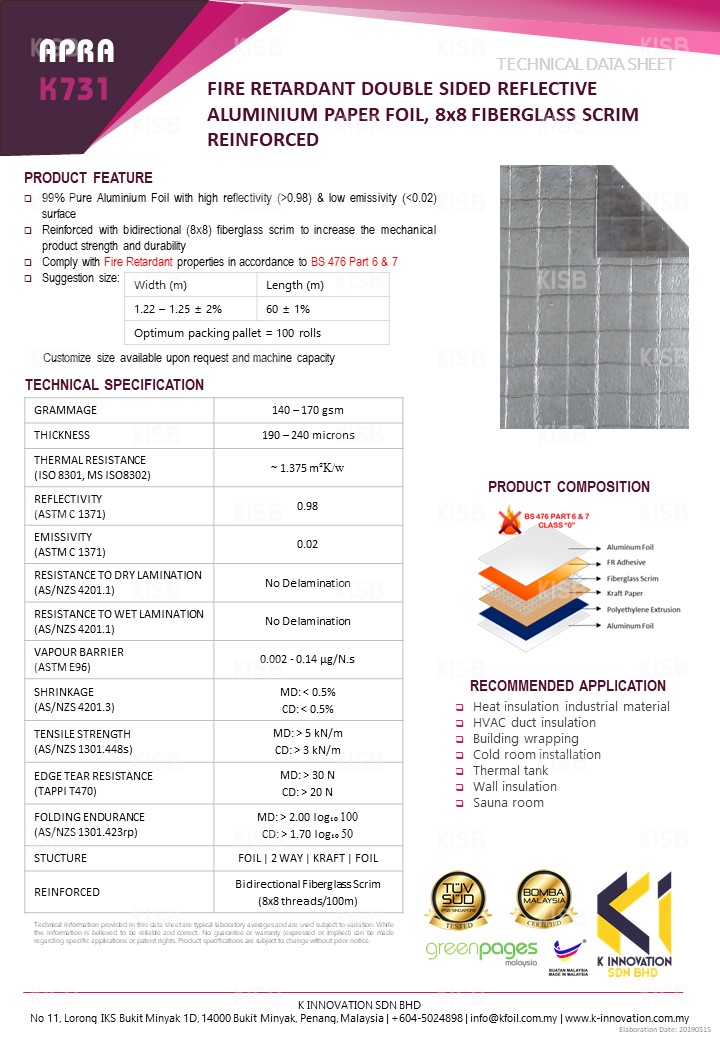

DOWNLOAD TDS

Product Description
FIRE RETARDANT DOUBLE SIDED REFLECTIVE ALUMINIUM PAPER FOIL, 8x8 FIBERGLASS SCRIM REINFORCED

PRODUCT FEATURE :-

99% Pure aluminium Foil with high reflectivity (>0.98) & (>0.02) surface
Reinforced with bidirectional (8x8) fiberglass scrim to increase the mechanical product strength and durability
Comply with Fire Retardant properties in accordance to BS 476 Part 6&7
Suggestion size:

Width(m) Length (m)

1.22 – 1.25 ± 2% 60 ± 1%

Optimum packing pallet =100 rolls

Customize size available upon request and machine capacity

TECHNICAL SPECIFICATION

GRAMMAGE	140 – 170gsm
THICKNESS	190 – 240 microns
THERMAL RESISTANCE (ISO 8301, MS ISO8302)	~1.375m²K/w
REFLECTIVITY(ASTM C 1371)	0.98
EMISSIVITY(ASTM C 1371)	0.02
RESISTANCE TO DRY LAMINATION (AS/NZS 4201.1)	No Delamination
RESISTANCE TO WET LAMINATION (AS/NZS 4201.1)	No Delamination
VAPOUR BARRIER(ASTM E96)	0.002 – 0.14μg/N.s
SHRINKAGE (AS/NZS 4201.3)	MD:<0.5% CD:<0.5%
TENSILE STRENGTH (AS/NZS 1301.448s)	MD:>5 kN/m CD:>3 kN/m
EDGE TEAR RESISTANCE (TAPPI T470)	MD:>30N CD:>20N
FOLDING RESISTANCE (AS/NZS 1301.423rp)	MD:>2.00 LOG₁₀100 CD:>1.70 LOG₁₀ 50
STUCTURE	Foil \| 2 WAY \| KRAFT \| FOIL
REINFORCED	Bidirectional Fiberglass Scrim (8x8 threads/100m)

Technical information provided in this data sheet are typical laboratory averages and are subject to variation.
While the information is believed to reliable and correct, no guarantee or warranty (expressed or implied) can be made regarding specific applications or patent right.
Product specifications are subject to change without prior notice

RECOMMENDED APPLICATION

Heat insulation industrial material
HVAC duct insulation
Building wrapping
Cold room installation
Thermal Tank
Wall insulation
Sauna room

Width(m)	Length (m)
1.22 – 1.25 ± 2%	60 ± 1%
Optimum packing pallet =100 rolls
